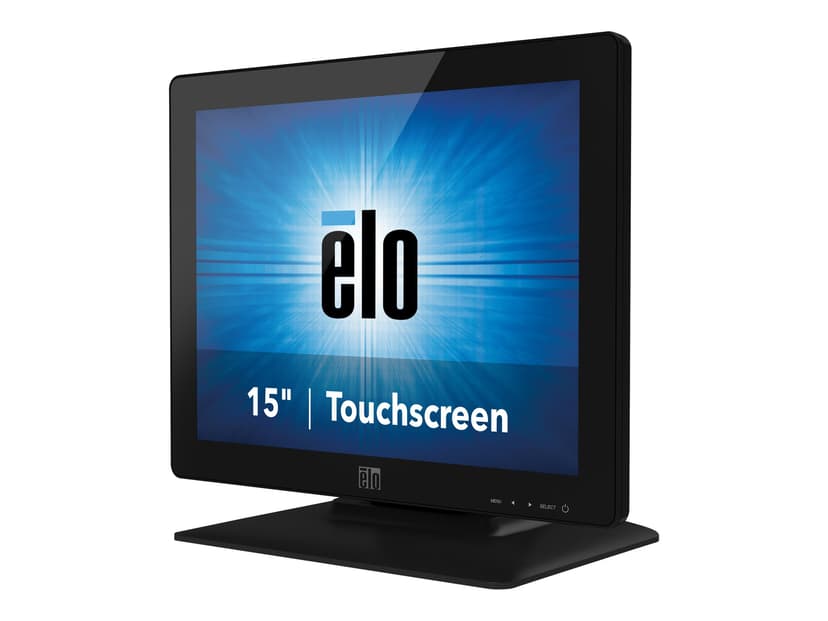

Elo 1523L 15" LCD LED Backlight iTtouch VGA/DVI PCAP Svart

5 995 kr
  • Lagerstatus: Sendes innen 48 timer
  • Frakt fra: 0 kr
  • Artikkelnr.
  • 5010990653
  • Prod. art. nr.
  • E738607


The Elo Touch Solutions 1523L 15-inch touch-monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.
The 1523L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, connectivity incorporated within the monitor, and communication cables and side controls with lockout capability.


Produsent Elo TouchSystems
Modell 1523L
Merke Elo
Produktserie Elo
Farge Svart
Inn-enhet Berøringsskjerm
Formfaktor Stasjonær
Mål (BxDxH) 35.8 cm x 31.8 cm x 19.9 cm - with stand
Bildeforhold 4:3
VESA-standard 75 x 75 mm
Ekstra funksjoner Anti-glare, Projected Capacitive Touch (P-CAP) technology
Fargestøtte 16,2 millioner farger
Skjermstørrelse 15 "
Horisontal visningsvinkel 160
Kontrastforhold 700:1
LCD-bakgrunnsbelysningsteknologi LED-bakgrunnsbelysning
Skjermoppløsning 1024 x 768
Responstid 25 ms
Type LED-bakgrunnsbelyst LCD-skjerm
Vertikal visningsvinkel 140
Screen size (cm) 15"
Farge Black, Svart
Display Type LED-backlit LCD monitor / TFT active matrix
Colour Support 16.2 million colours
Response Time 25 ms
Brightness 250 cd/m²
Color Black
TV-kanalvelgerforekomst Nei
Nødvendig spenning AC 120/230 V ( 50/60 Hz )
Grensesnitt DVI, VGA (HD-15)
Tilpassede standarder
Kompatible standarder UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC, IC, FCC, RoHS, DDC, KCC, WEEE, E-Standby, China RoHS, CoC
Standarder som følges IC, FCC, RoHS, DDC, KCC, WEEE, E-Standby, China RoHS, UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC
Min. driftstemperatur 0 °C
Maks. driftstemperatur 40 °C
Luftfuktighet ved drift 20 - 80% (non-condensing)
Størrelser og vekt
Yttermål Bredde 35.8 cm
Yttermål dybde 31.8 cm
Yttermål Høyde 19.9 cm
Vekt 4.44 kg
Egenskaper Security lock slot (cable lock sold separately)
MTBF 50000 hour(s)
Service og støtte
Service & support 3 års garanti
Lydutgang / Type Høyttaler(e)
Type Speakers - stereo
